CVD SiC Components

Manufactured with CVD process to improve life time and yield for parts used in Dry etcher and Diffusion chamber.

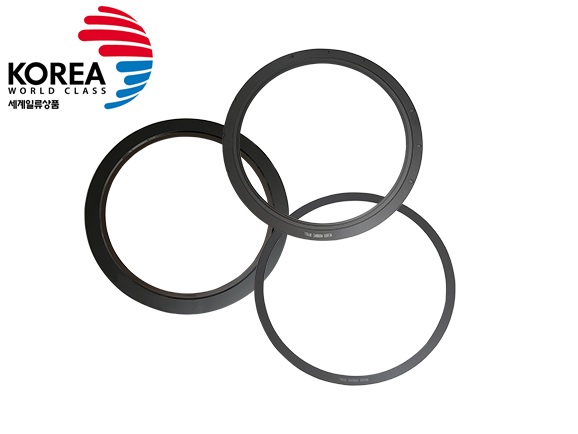

SiC Ring

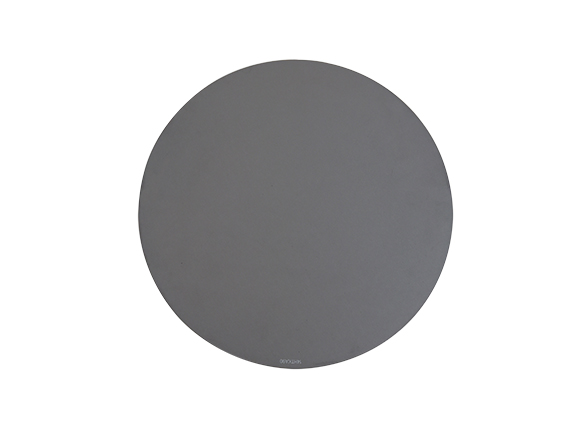

Dummy Wafer

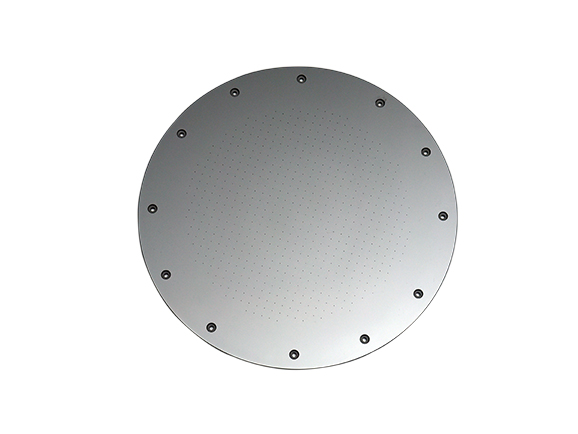

Shower Head


  • SiC Ring
  • SiC Shower Head
  • SiC Dummy Wafer


  • No heat deformation
  • No outgassing
  • Long lifetime compared with Si
  • Excellent chemical resistance

Material Properties of SiC

Material properties
Field of use Semiconductor Equipment Ceramic Jig (Focus Ring, SiC Wafer)
Major Features Ultra high purity, Excellent Plasma resistance
Properties Purity >99.9999%
Density (g/cm 3) 3.21
Thermal conductivity (W/m-K) 200 ~ 360
Coefficient of thermal expansion(/℃) 4.5~5
Hardness (kg/mm 2) 2900~3300
Resistivity [Ωcm] 0.1~15,000
Corrosion resistance, (HCl)[2300 ℃] x
